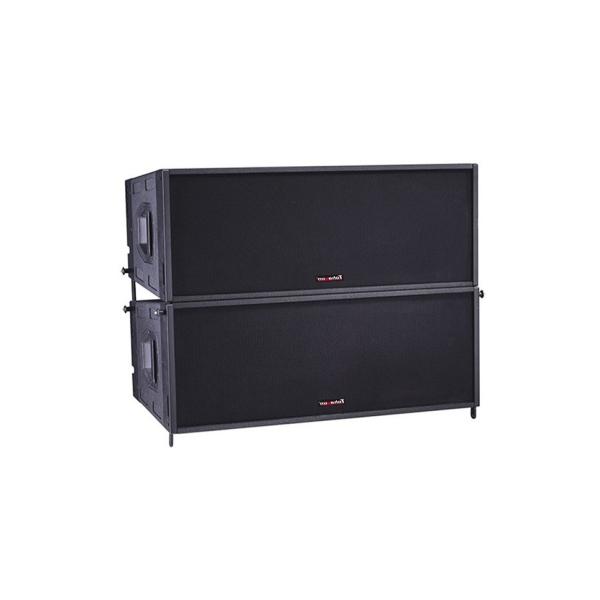

Double 15-Inch Linear Array Stereo, For Clubs And Disco
Quick Detail:
Plywood loudspeakers with beautiful and compact cabinet design, high quality sound, rotatable horn for multipurpose applications.
Product features:
Q15 linear array has excellent frequency response, providing a flat response in the range of 55 hz to 20 Khz and extending to 35 Hz for ultra-bass
The whole system uses two-way four-unit, external frequency division design, Double 15-inch mid-bass speakers, with a 3-inch treble driver, combined with the company's own design of compression drive constant direction horn, can Be very good control of high-frequency directivity, in the horizontal 100 degrees range, will be uniform high-frequency response..
According to the needs of on-site sound reinforcement, but also to meet the vertical 10-degree range of effective attenuation. The invention can make multiple sound box systems work simultaneously without interference between each other and meet the requirements of long-range sound amplifying.
The adjustable angle of each box is 0-10, adjustable every 1 degree. All made of 6061 aluminum, heat treated with T6, the hanger has enough strength to reduce the weight of the speaker and has a 7:1 Factor of safety for 12 speakers. The box body is composed of 18mm splint of the panel, and the surface is wear-resistant black dot-pattern paint.
Built-in divider on the high-frequency attenuation protection function, in the use of a strong protection device for stable operation.
Product parameters:
System Type:Double 15-inch two-tone passive line array speaker
Frequency range:55Hz-20kHz
Directivity(HXV) :100X30°
Rated power : 600/2400W
Sensitivity: High Frequency；106dB, Intermediate frequency；99dB
Maximum SPL:145dB
Nominal impedance:High Frequency16Ω,Intermediate frequency；16Ω
Coverage Angle:H100°x V30°
Intermediate Frequency Unit: 2*15 Inch Drivers
High Frequency Unit: 1*3 Inch
Paint:Black spot paint / waterproof polyester paint
Steel Mesh:Antirust Mesh
Product size:(WXDXH) 1066x656x470 mm
Net weight: 55Kg(Each)
Our Services
1. All items are guaranteed to be exactly and consistently the quality of the samples provided.
2. Shipment on time.
3. Cable will be replaced in first year upon receipt of your claim about product quality, and spare parts are supplied continuously at cost price.
4. Recommend successively new items made in China to our clients.
5. If any requested, we would arrange our clients to take inspection trips to our factories.
6. OEM service according to client's requirement.
